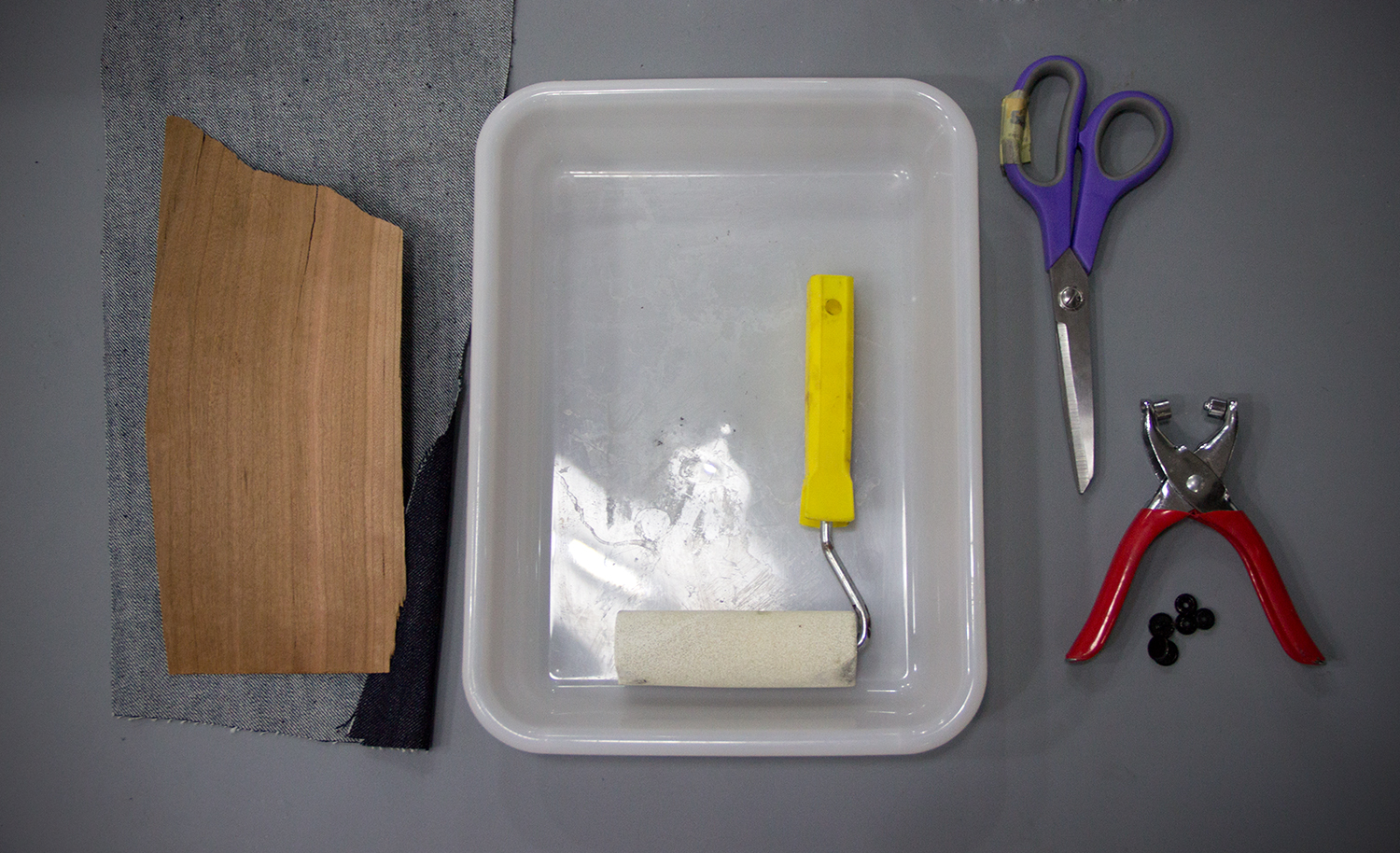

What do you need:
veneers
textile (denim)
woodglue + brush or paint roller
vacuum press
lasercutter (trotec speedy 100)
rhinoceros
4 buttons (for cling sealing)
rivet gun for buttons

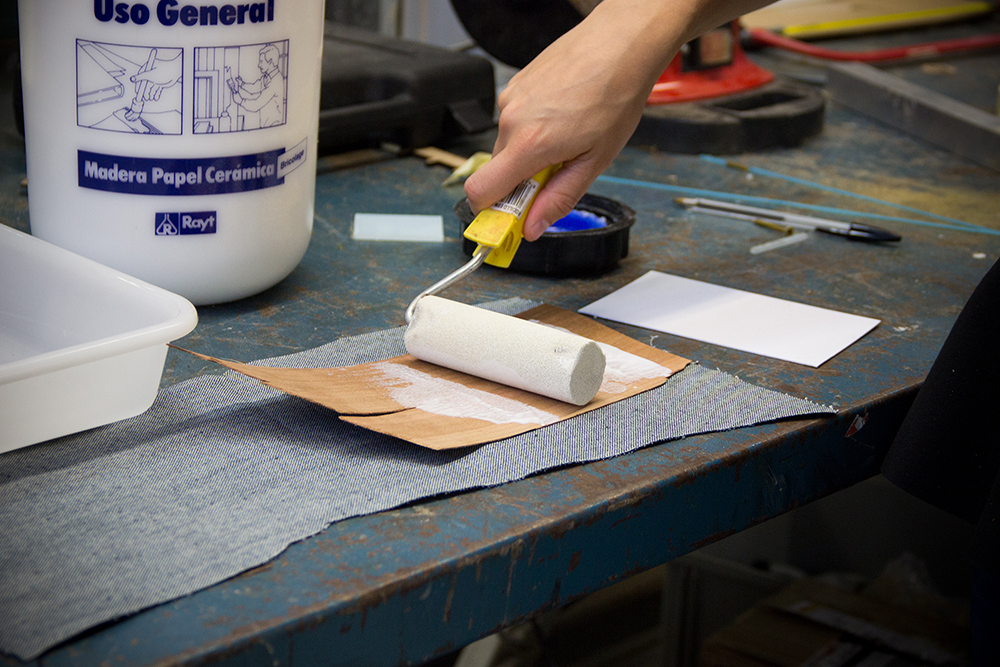

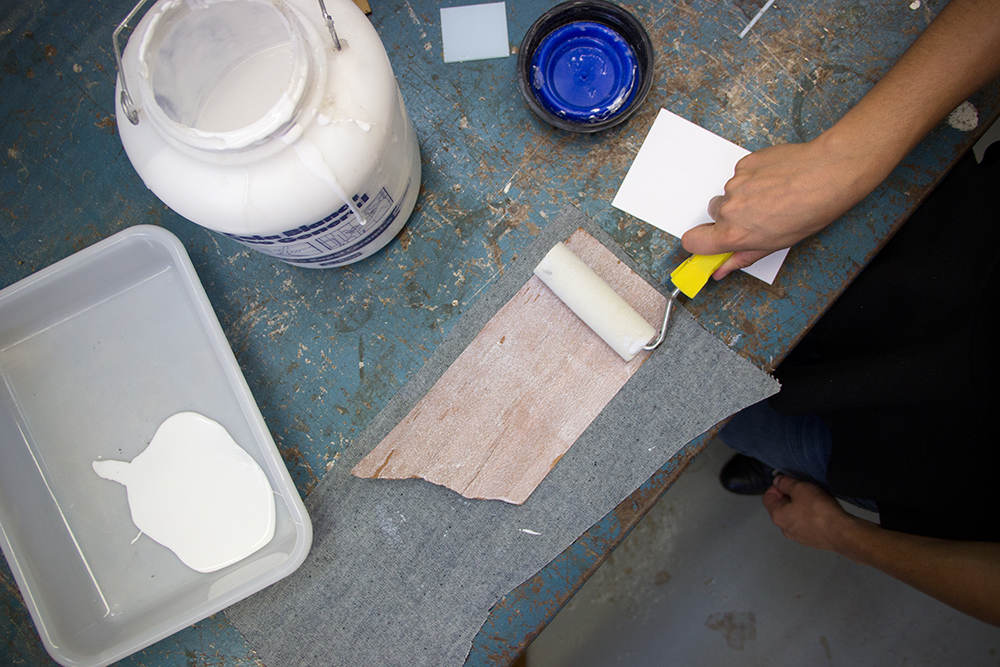

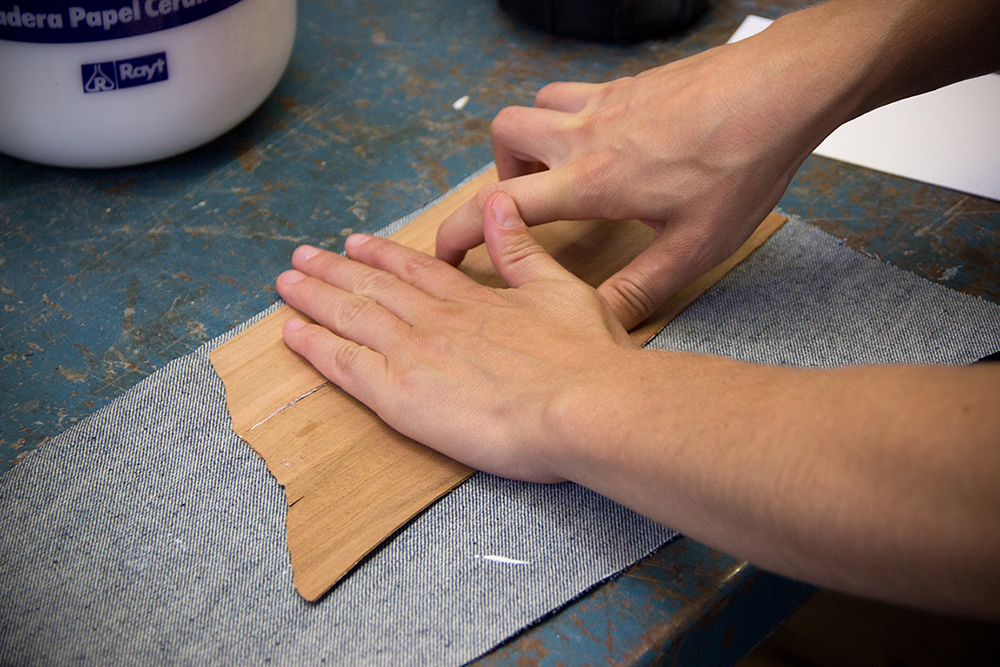

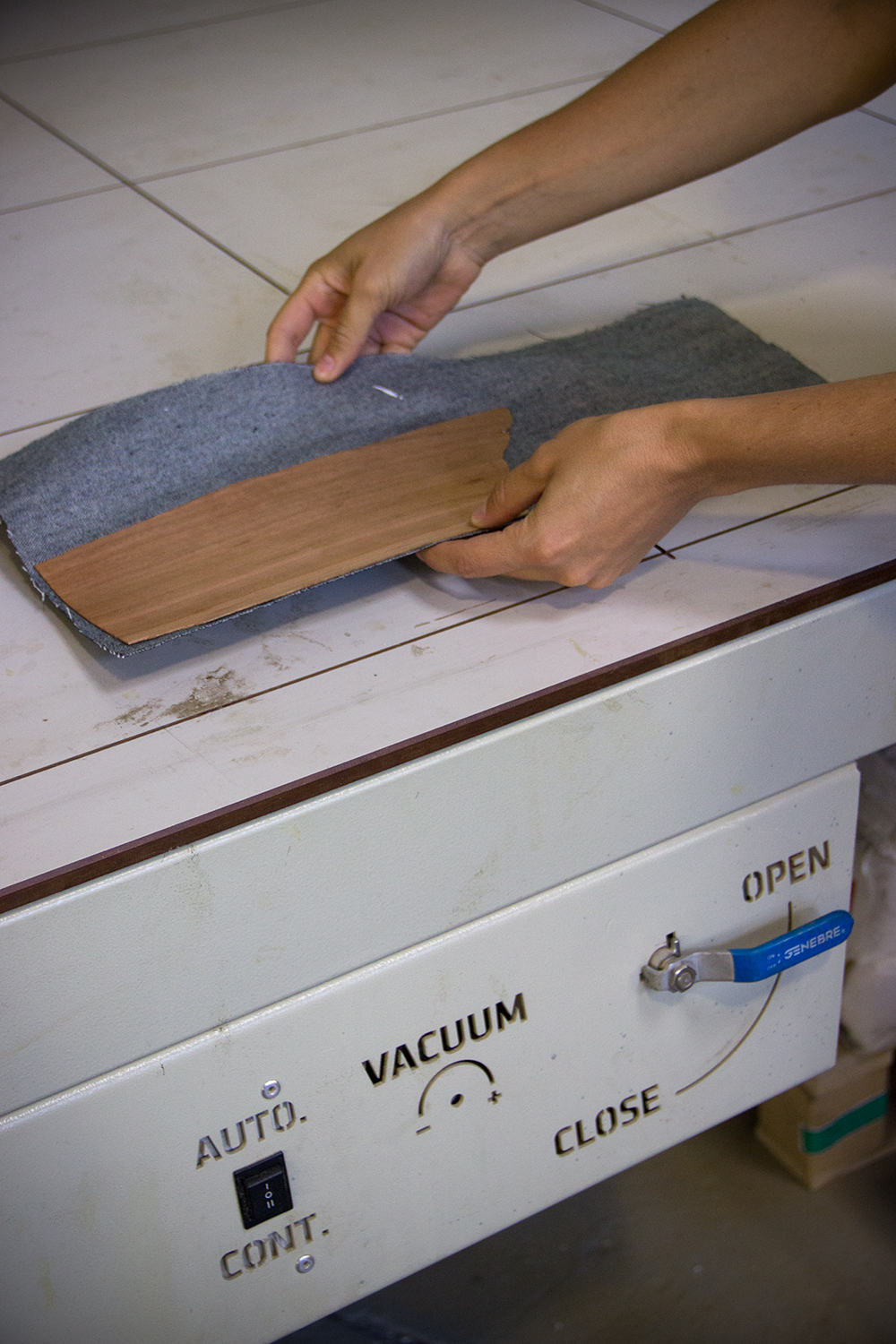

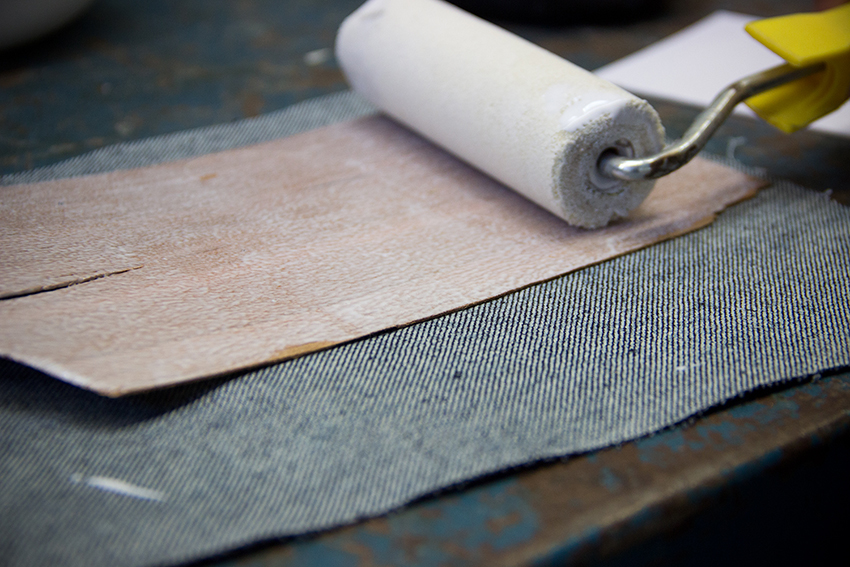

How to do: Connecting fabric and wood 1. Cut your fabrics and veneers in nearly the same size 2. Brush one side of the wood with the woodglue and put it on the fabric (ensure that the fabric is flat). For a better result we recommend, to do it with the paint roller, so that the glue is very thin and evently distributed 3. Now, place the two materials into a vaccum press and wait until the materials get connected and dried





Preparing the Lasercut Meanwhile you can create your File for the lasercut. You can do that in Adobe Illustrator (save as DXF) or directly in Rhinoceros. The lines should be colored red for cutting. You have to think about how you want to connect the bracelet (we choose the buttons). Our Example, you can download here.

Lasercutting the wooden-textile

1. For a good result (only the wood gets cut) you need the the right power and speed for the lasercut-settings

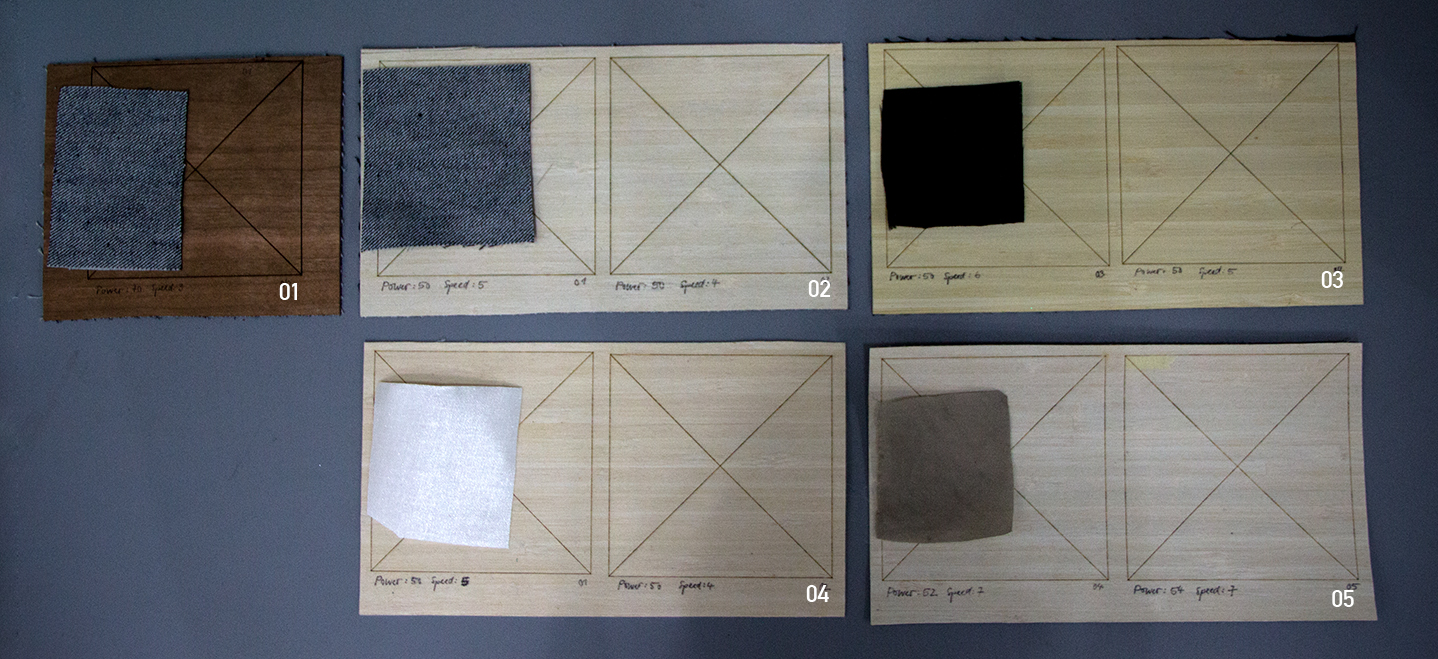

   Here you can see some examples made with the Trotec Speedy 100:

01 1.5mm wood + denim Power:70 Speed:3
02 1 mm wood + denim Power:50 Speed:4
03 0.5mm wood + synthetic fabric Power:50 Speed:5
04 1mm wood + synthetic fabric Power:50 Speed:4
05 1mm wood + very thin synthetic fabric Power:57 Speed:7

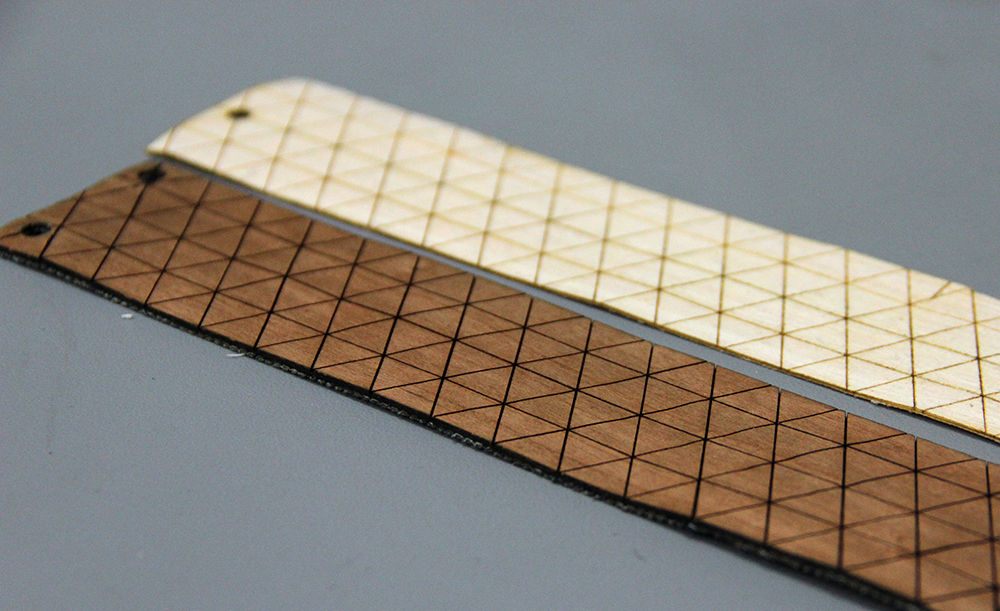

2. First do the engraving (the pattern), after, the cutting part (the shape)
3. For cutting you just have to put the power to a higher value ( f.e.: 50 > 90)

Finishing

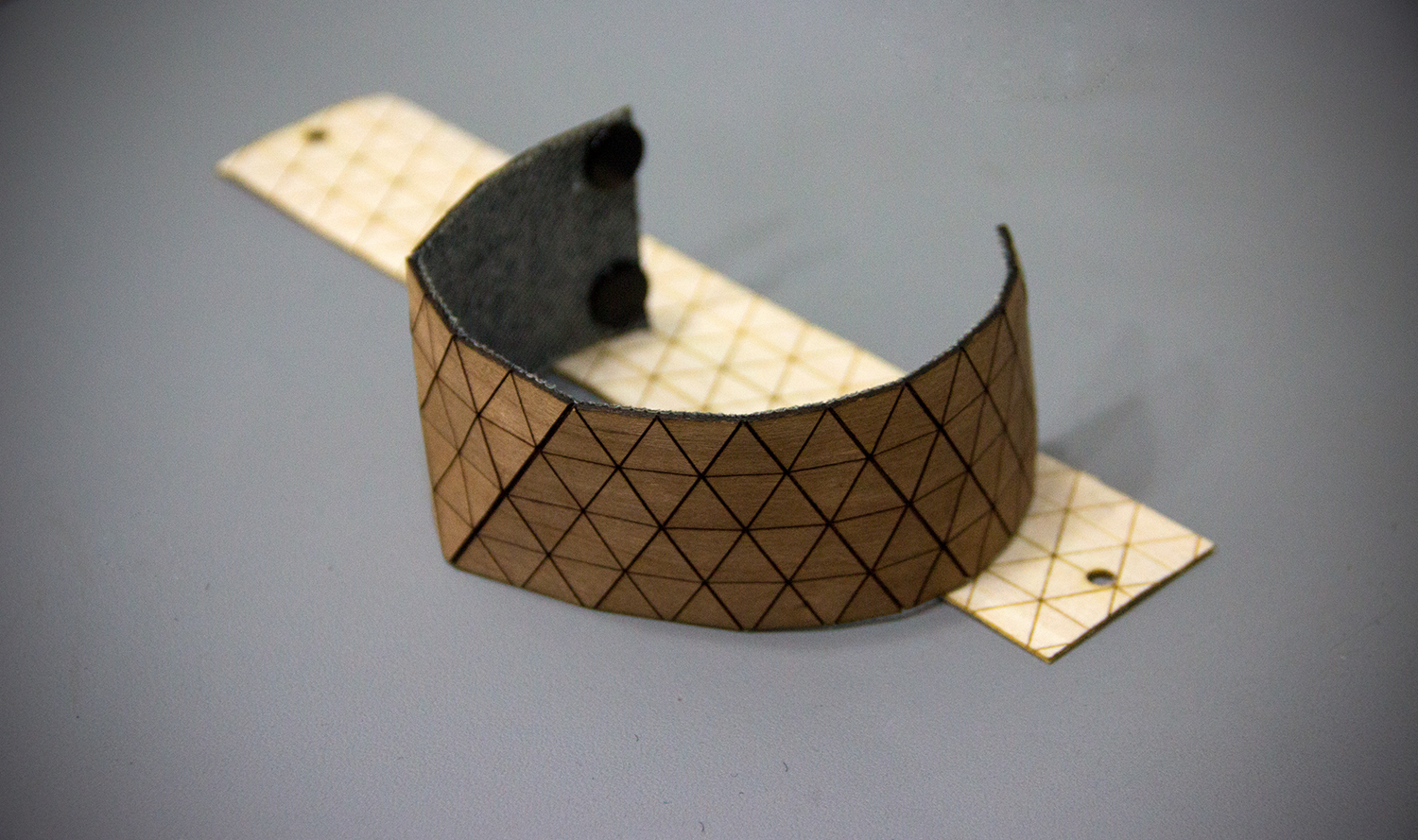

Now you can finish your piece by attaching the buttons to the blacelet. For that you just need the appropriate rivet gun or tool.
